Blickle

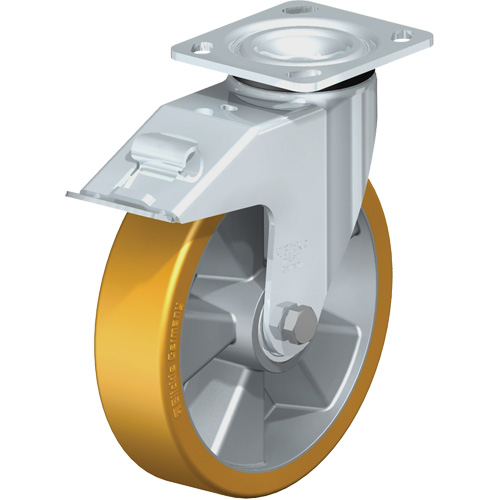

Heavy-Duty Kingpinless Caster, Swivel with Brake, 8" (203.2 mm), Polyurethane, 1250 lbs. (567 kg.)

Model: ML768

Mfr. No.: LEH-ALTH 200K-14-FI

  • Heavy-Duty Kingpinless Caster, Swivel with Brake, 8" (203.2 mm), Polyurethane, 1250 lbs. (567 kg.) Seaboard Timber Mart

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$251.00 / Each

Wheel Diameter

8" (203.2 mm)

Capacity

1250 lbs. (567 kg.)

Wheel Material

Polyurethane

Caster Type

Swivel with Brake

Frame Material

Steel

Tread Width

2" (50.8 mm)

Bolt Hole Spacing

2-5/8" x 3-5/8" (67 mm x 92 mm) to 3" x 3" (76 mm x 76 mm)

Bolt Hole Size

3/8" (9.52 mm)

Plate Size

4" x 4-1/2" (102 mm x 114 mm)

Bearing Type

Roller

Swivel Radius

6.5"

Overall Height

9.5"


  • 1/2" zerk axle and lock nut
  • 5/16" diameter thrust raceway; 5/16" diameter kingpin raceway
  • Raceway protected from dust and dirt
  • Corrosion resistant bright zinc finish
  • Brake type: Total locking ; Excellent for:
  • Abusive conditions
  • Tow lines
  • Industrial platform trucks
  • Most hardworking industrial functions
  • Economical handling of heavy loads where severe abuse is present
