Blickle

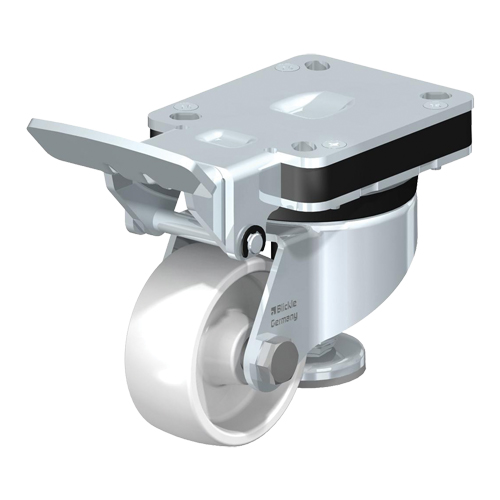

Heavy-Pressed Caster, Swivel, 4" (101.6 mm), Steel, 505 lbs. (230 kg.)

Model: MO703

Mfr. No.: HRLK-PO 100KA

  • Heavy-Pressed Caster, Swivel, 4" (101.6 mm), Steel, 505 lbs. (230 kg.) Seaboard Timber Mart

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$298.00 / Each

Wheel Diameter

4" (101.6 mm)

Capacity

505 lbs. (230 kg.)

Wheel Material

Steel

Caster Type

Swivel

Frame Material

Steel

Tread Width

1-7/16" (37 mm)

Bolt Hole Spacing

3-1/4" x 2-3/8" (83 mm x 60 mm)

Bolt Hole Size

11/32" (9 mm)

Plate Size

4" x 3-3/8" (102 mm x 86 mm)

Tread & Tire Hardness

70° Shore D

Bearing Type

Ball Bearing

Total Height

5-5/8"

  • Swivel rig with double ball bearing in the swivel head
  • Minimal swivel head play and smooth rolling characteristics
  • Medium heavy duty rigs, with top plate fitting
  • Low rolling and swivel resistance for smooth running performance
  • High chemical resistance to many aggressive substances
  • Operating temperature: -15° F to +175° F
