Darcor

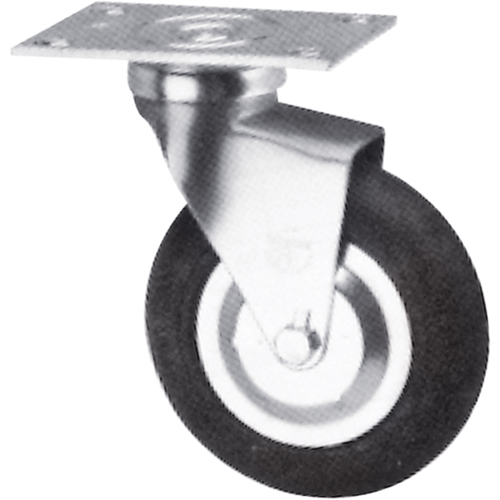

Caster, Swivel, 4" (101.6 mm), Neoprene, 125 lbs. (57 kg.)

Model: MG051

Mfr. No.: 12-24-XD

  • Caster, Swivel, 4" (101.6 mm), Neoprene, 125 lbs. (57 kg.) Seaboard Timber Mart

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$80.50 / Each

Wheel Diameter

4" (101.6 mm)

Capacity

125 lbs. (57 kg.)

Wheel Material

Neoprene

Caster Type

Swivel

Frame Material

Steel

Tread Width

1" (25.4 mm)

Bolt Hole Spacing

2-3/4" x 1-3/4" (70 mm x 44 mm)

Bolt Hole Size

5/16" (7.93 mm)

Plate Size

2-1/2" x 3-5/8" (64 mm x 92 mm)

  • 5/16" axle
  • 7/16" rivet
  • Double row ball bearing swivel/both raceways equal diameter
  • All swivel parts case hardened to Rockwell 62C
  • Thread guards standard on sizes larger than 2"
  • Bright zinc finish
  • Brake available on 3" and 4" dia. wheelsExcellent for:
  • Material handling carts and dollies
  • Institutional equipment ; ; Swivel top plate; Plate size: 2 1/2" x 3 5/8" ; Holes slotted for: 1 3/4" x 2 3/4" to 3"; Bolt hole size: 5/16"; ; Rigid top plate; Plate size: 2 3/4" x 4"; Holes slotted for: 1 3/4" x 2 7/8" to 3"; Bolt hole size: 5/16"
Light-Duty Caster, Swivel, 4" (101.6 mm), Rubber, 150 lbs. (68 kg.) Seaboard Timber Mart

Algood

Light-Duty Caster, Swivel, 4" (101.6 mm), Rubber, 150 lbs. (68 kg.)

  • Frame Material: Steel
  • Tread Width: 1" (25.4 mm)
  • Bolt Hole Spacing: 1-3/4" x 3" (44 mm x 76 mm)
  • Bolt Hole Size: 5/16" (7.93 mm)
  • Plate Size: 2-3/4" x 3-3/4" (70 mm x 95 mm)
  • Bearing Type: Steel
  • Swivel Radius: 3.375"
  • Overall Height: 4.8125"

Model: MG075

Mfr. No.: S1043-A28D-1 1/4SRG

Made in Canada Made in Canada

$21.40 / Each
