Gray Tools

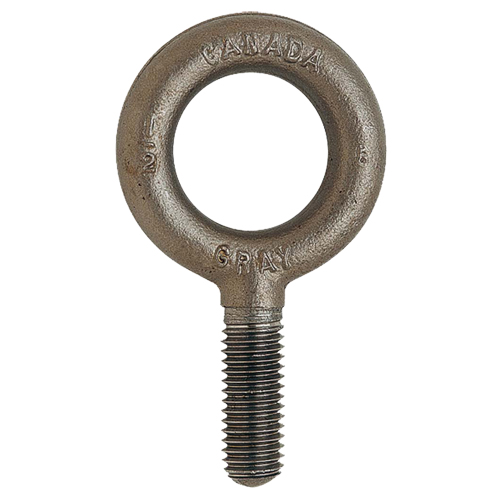

Eye Bolt, 1-13/16" Dia., 1-3/8" L, Uncoated Natural Finish, 2000 lbs. (1 tons) Capacity

Model: LU684

Mfr. No.: BP14

  • Eye Bolt, 1-13/16" Dia., 1-3/8" L, Uncoated Natural Finish, 2000 lbs. (1 tons) Capacity Seaboard Timber Mart

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$11.30 / Each

Working Load Limit

2000 lbs. (1 tons)

Finish

Uncoated Natural Finish

Eye Diameter

1-13/16"

Shank Length

1-3/8"

Body Style

Without Shoulder

Shank Threading

Fully Threaded

I.D. Eye

1-3/32"

O.D. Eye

1-13/16"

Thread Size Mm, UNC-2A

7/16" - 14"

Overall Dimensions

3-1/4" L x 2" W x 13/32" H

Weight

0.2 lbs.

  • Never apply loads greater than rated capacity
  • Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
  • Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
